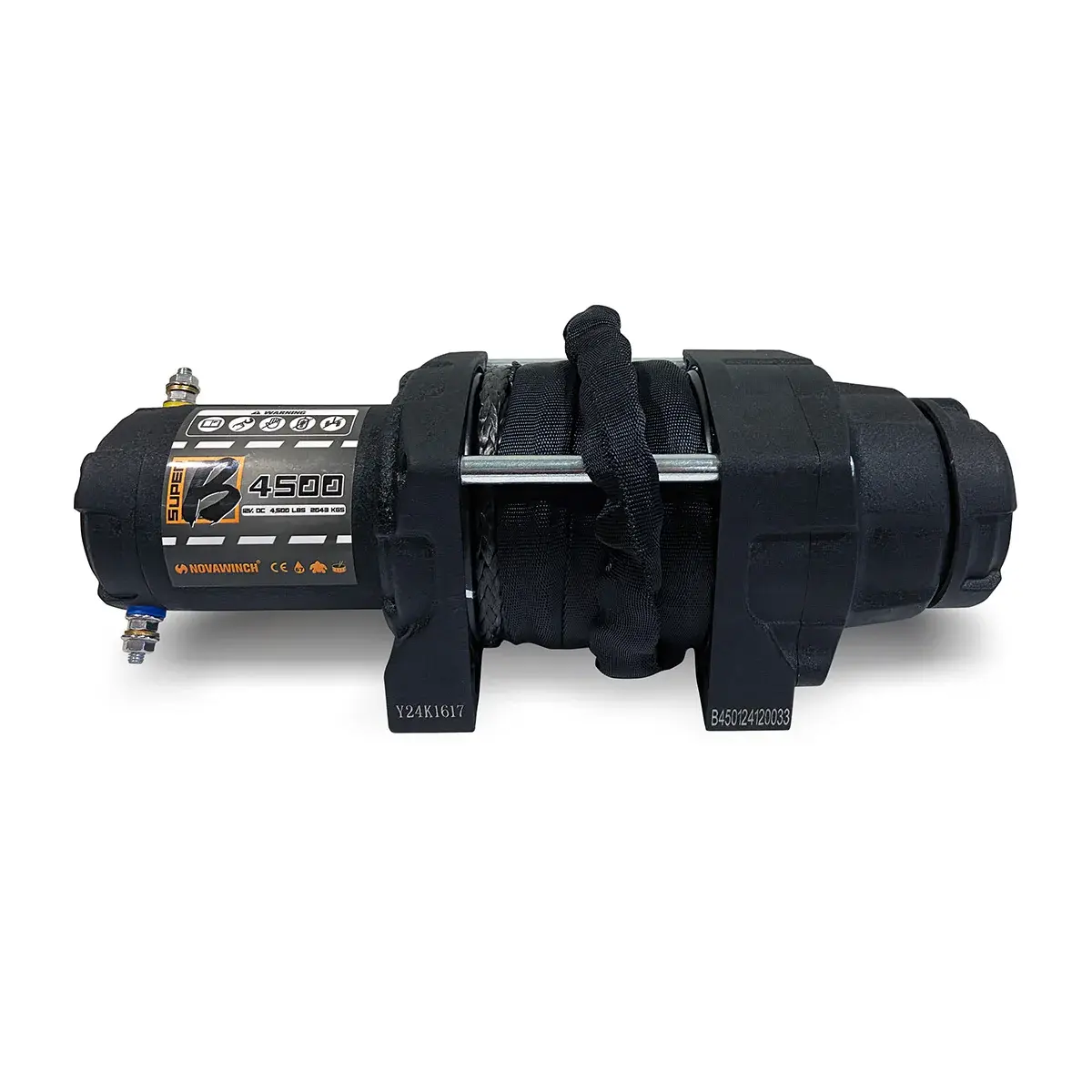

Nova Super B Series ATV/SxS Winch – 4,500lb 12 volt
The Super B 4500lb 12V ATV/SxS Winch is designed for vehicle recovery and features a low-resistance freespool for faster, easier line deployment.
Built to last, the Super B Series from Novawinch is a true workhorse. It features a high-torque motor (wound in-house at the factory), an ultra-compact gearset for tight-space installations, and all-metal construction - built to withstand tough off-road conditions.
Key Features
- High-Torque permanent magnet motor | Sealed 2.6hp/2.0kW
- Weatherproofing - The IP67-rated seals keep out water, mud, sand and dust.
- Low resistance freespool
- 360º All-metal free spool control
- Mechanical plus automatic load-holding brake
- Planetary compact gearset with a 180:1 ratio
- Welded, steel drum - stronger and reflects a higher quality compared to cheap cast aluminium
- Standard ATV mount pattern: 4.9” x 3” (124mm x 76mm)
- 6mm x 11.58m Synthetic Rope
Includes
- 12-volt 4,500lb Novawinch Super B Series Winch
- Aluminium hawse fairlead
- Synthetic Rope
- Winch Hook
- Mini handlebar rocker switch
- Plug-in controller
- Mounting hardware
- Cable ties
- Rated line pull: 12500lbs (5670kg) single line
- Motor (Series wound): DC 24V:6.4hp/4.7kW
- Gear train: 2 stage spur, 2 stage planetary, 171:1 ratio
- Clutch: Rotating ring gear, 90 degree turn lever
- Braking action: Automatic in gearbox
- Fairlead: 4-way roller fairlead/Aluminium hawse
- Drum size: 63mm×222mm
- Dimensions: 608mm L x 180mm W x 238mm H
- Bolt pattern: 254mm x 114mm
- Weight: 36kg
- Solenoid enclosure to motor wires approx 500mm length
